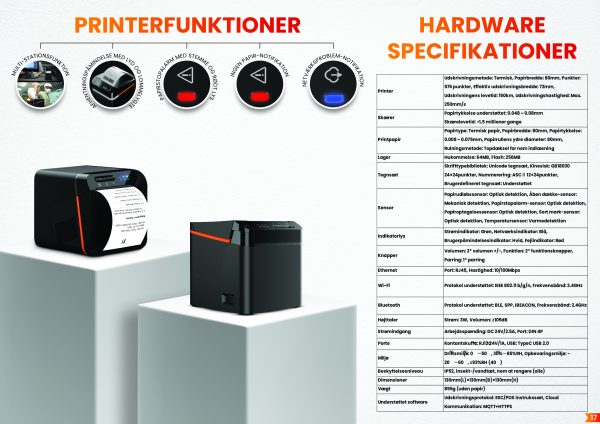

Yderligere information
| Printer | Printing Method: Thermal Paper Width: 80mm Dots: 576 dots Effective Print Width: 72mm Print Life: 150km Print Speed: Max. 250mm/s |
|---|---|
| Cutter | Paper Thickness supported: 0.048 ~ 0.08mm Cutter Life：>1.5 Million times |
| Printing Paper | Paper Type: Thermal paper Paper Width :80mm Paper Thickness: 0.008 ~ 0.075mm Paper Roll Outer Diameter: 80mm Till Roll Loading Method: Top cover for easy loading |
| Memory | Memory: 64MB Flash: 256MB |
| Character Set | Font Library: Unicode character set Chinese: GB18030 24×24dots Numbering: ASCⅡ 12×24dots User Defined Character Set: Supported |
| Sensor | Sensor |
| Indicator Light | Power Indicator: Green Network Indicator: Blue User Reminder Indicator: White Error indicator: Red |
| Buttons | Volume: 2* volume +/- Function: 2* function buttons Pairing: 1* Pairing |
| Network | Ethernet Port: RJ45 Speed: 10/100Mbps |
| Wi-Fi | Protocol Supported: IEEE 802.11 b/g/n Frequency Band: 2.4GHz |
| Bluetooth | Protocol Supported: BLE, SPP, IBEACON Frequency Band: 2.4GHz |
| Speaker | Power: 3W Volume：≥105dB |
| Power Adapter | Working Voltage: DC 24V/2.5A Port: DIN 4P |
| Ports | Cash Drawer: RJ12 24V/1A USB: TypeC USB 2.0 |
| Software Supported | Print Protocol: ESC/POS Instruction set Cloud Communication: MQTT+HTTPS |
| Dimensions | 130mm(L)×130mm(W)×130mm(H) |
